Purpose:

This machine is suitable for hot stamping aluminum foil onto various types of paper products. For high-end and fine printed products, concave convex hot stamping and flat hot stamping can be performed on this machine to obtain three-dimensional, exquisite and beautiful packaging and decoration products. The paper pressure servo control makes the operation simple and fast.

Purpose: Consumables:

1. Hot stamping version

 2. Aluminum foil film, hot stamping film

Attribute:

Machine characteristics:

1. The entire machine is made of Q235 carbon steel, and the body wall panels have undergone special processing to ensure high strength and no deformation, ensuring the safety of the body wall panels.

2. Adopting Taiwan imported ball screw to ensure accurate machine operation, the main servo has overload protection device, and the synchronous with fracture protection device will automatically stop when subjected to external impact, reducing damage to the body and suction and discharge accuracy, and avoiding the occurrence of faults.

3. The host uses imported original bearings.

 4. The entire machine uses imported electrical components such as Omron from Japan and Schneider from France.

5. The precision of hot stamping is ± 0.1mm, and the maximum speed of the machine is 1500 sheets per hour.

 6. Install pressure regulation automatic control device to ensure fast and accurate adjustment of hot stamping pressure.

7. Chinese and English touch screen operation interface.

8. Using Taiwanese Yade pneumatic components to ensure accurate pneumatic movements.

 9. The main PLC adopts Xinjie Electric (stock code 603416) to ensure smooth operation of the machine.

Detail display:

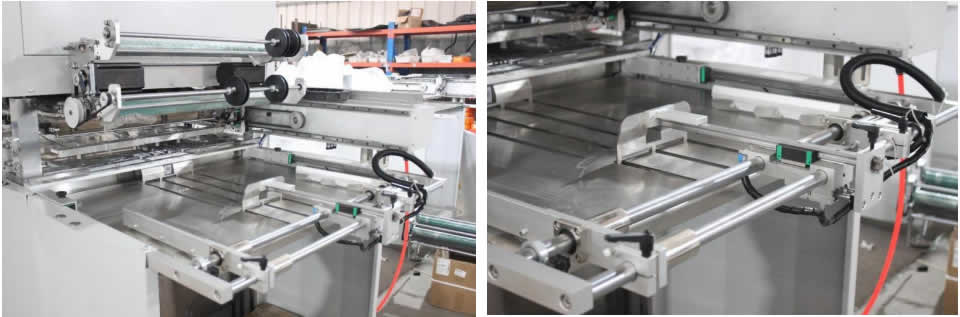

Paper Delivery Department:

1. Adopting advanced control system to control the speed of paper feeding device to ensure smooth paper transportation;

2. The paper separation part is made of special aluminum alloy material, which makes the paper flow smoother;

3. Single sheet paper feeding, smooth and accurate;

4. Paper suction and discharge servo fine adjustment technology, non-stop adjustment.

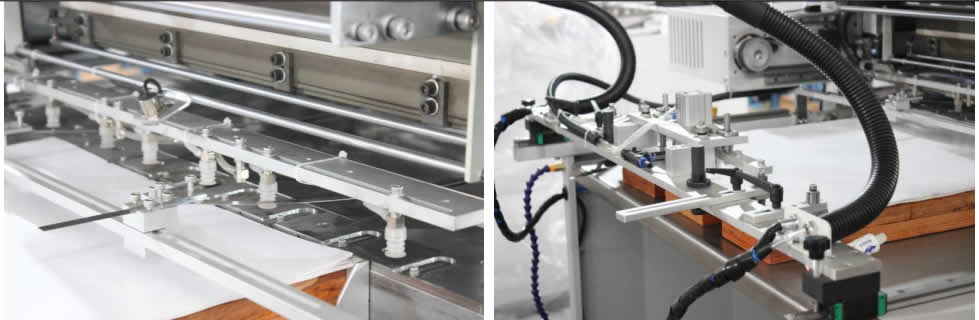

 Hot stamping department:

1. Quick pull-out plate changing device, making plate changing more convenient and efficient;
2. The hot stamping is made of 7075 high-grade aviation aluminum, which has undergone hard oxidation treatment on the surface, ensuring easy operation, surface hardness, and resistance to deformation;

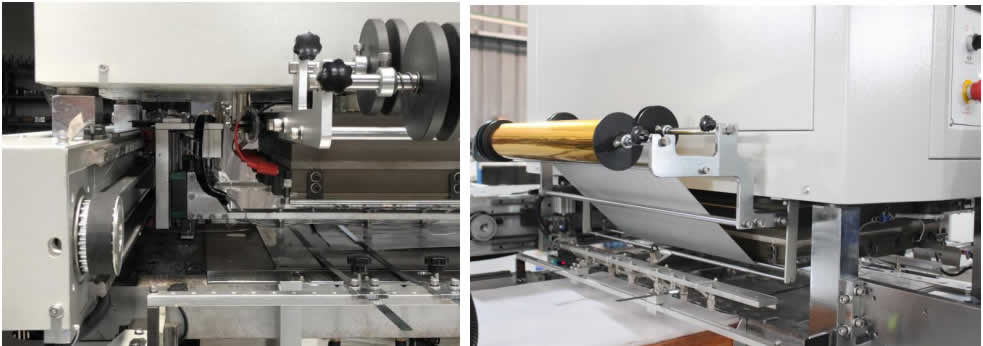

3. Vertical foil feeding system, reducing foil usage and saving foil replacement time;
4. The two vertical foil feeding mechanisms are all equipped with China Zhishan servo motors and Xinjie Electric PLC control systems. Convenient for users to operate. The institutional design is located behind the vertical foil feeding, ensuring smooth collection of hot stamping and foil collection;
5. The host can be manually controlled separately;
6. Flattening type upper platform pressure regulating device;
7. Screw driven top rod device, which can achieve maximum and strongest pressure;
8. Vacuum negative pressure detection ensures no paper shutdown;
9. Adopt L-shaped right angle push gauge to meet different printing register requirements.
Delivery Department:

1. Automatic paper alignment device;
2. The paper delivery photoelectric ensures neat paper delivery;
3. Automatic lifting control system for the paper delivery platform.

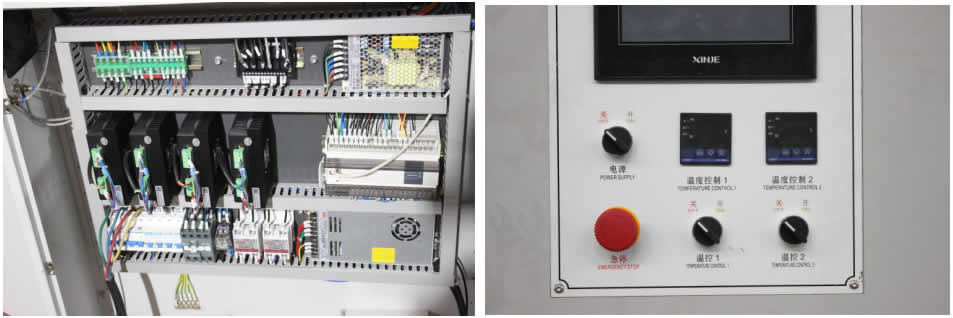

Electrical Department:

1. The human-machine interactive touch function can be set to different long and short pulls;
If the length of the gold foil is less than 10cm, an alarm will be triggered;
3. The computer processing gold foil monitoring system displays the remaining and used gold foil lengths;
4. Adopting Schneider Electric components from France and Xinjie Electric PLC control system to ensure stable machine operation;
5. Adopting Japanese and German Sik Optoelectronics.
