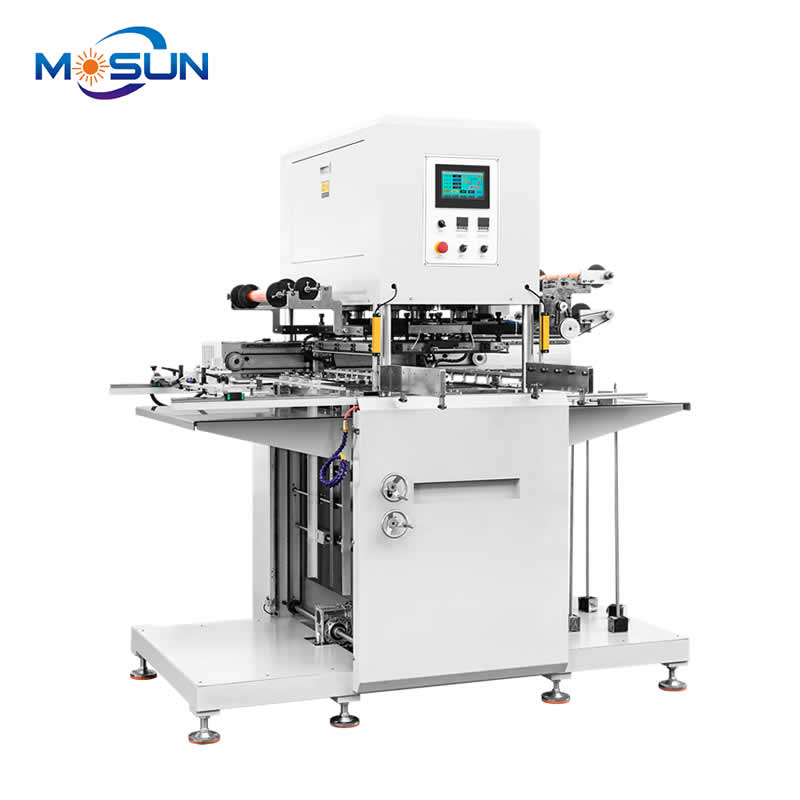

Usage 用途: This machine is suitable for hot stamping anodized aluminum on various paper products,all kinds of advanced fine printing,can be in this machine for concave and convex hot stamping,flat hot stamping,in order to get three-dimensional sense,exquisite and beautiful packaging,decoration products,Paper feeding pressure servo control,easy and fast operation. 本机适用于将电化铝烫印到各种纸品上，各种高级精细的印刷品，可在本机上进行凹凸烫印平面烫印，以获得富有 立体感、精致美观的包装、装潢制品，走纸压力伺服控制，操作简单快捷。

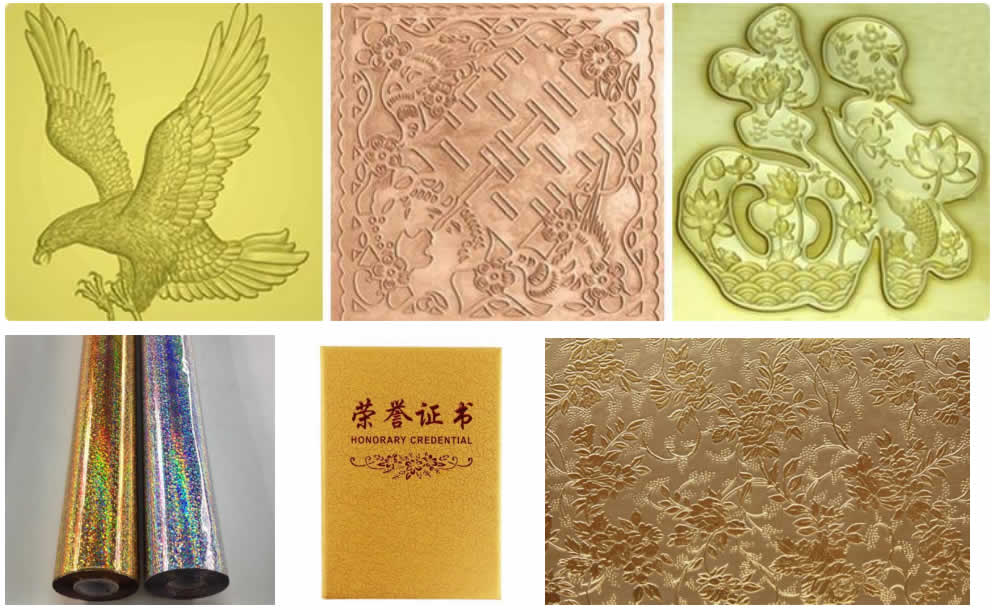

Consumables 耗材

 烫金版

 电化铝膜，烫金膜

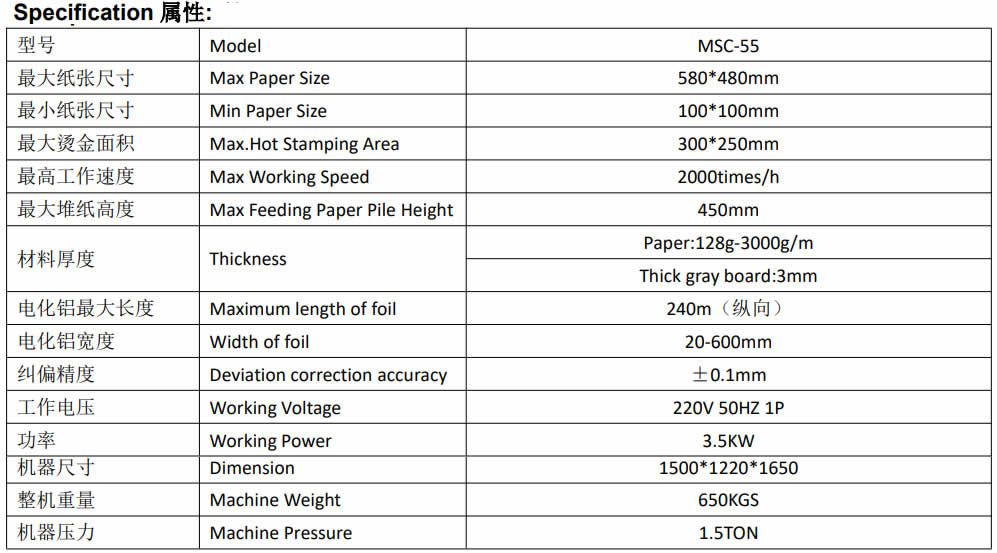

Feature Highlights 机器特性

(1)The entire machine is made of Q235 carbon steel, and the body wall panels are treated with special processes to ensure high strength and never deform, ensuring the safety of the body wall panels. 整机全部采用 Q235 碳素钢，机身墙板经特殊工艺处理，强度高、永不变形，保证机身墙板安全。

 (2)The ball screw imported from Taiwan is used to ensure accurate machine movement. The host servo has an overload protection device, and the synchronous belt fracture protection device will automatically stop when it is impacted by external forces, reducing damage to the fuselage and suction and discharge accuracy, and avoiding the occurrence of malfunctions. 采用台湾进口滚珠丝杆，保证机器动作准确，主机伺服有过载保护装置，同步带有断裂保护装置受到外力冲击时 会自动停机，减少对机身和吸排精度的损坏，避免故障的发生。

 (3)The host uses imported original bearings. 主机使用进口原装轴承。

 (4)The entire machine uses imported electrical originals such as Omron from Japan and Schneider from France. 整机部分使用日本欧姆龙、法国施耐德等进口电器原件。

 (5)The hot stamping accuracy reaches ±0.1mm, and the machine's maximum speed reaches 2000 sheets/hour. 烫金精度达±0.1mm，机器最高速度达 2000 张/小时。

 (6)Equipped with pressure adjustment automatic control device to ensure fast and accurate adjustment of hot stamping pressure. 配置压力调节自动控制装置，保证在调节烫金压力时快速准确。

 (7)Chinese and English touch screen operation interface. 中英文触摸屏操作界面。

 (8)Using Taiwan Airtac pneumatic components to ensure the accuracy of every pneumatic action. 采用台湾亚德客气动元件，保障每一个气动动作准确。

(9)The main PLC uses Xinjie Electric (stock code 603416) to ensure smooth operation of the machine. 主 PLC 采用信捷电器(股票代码 603416)，保证机器运转平稳。

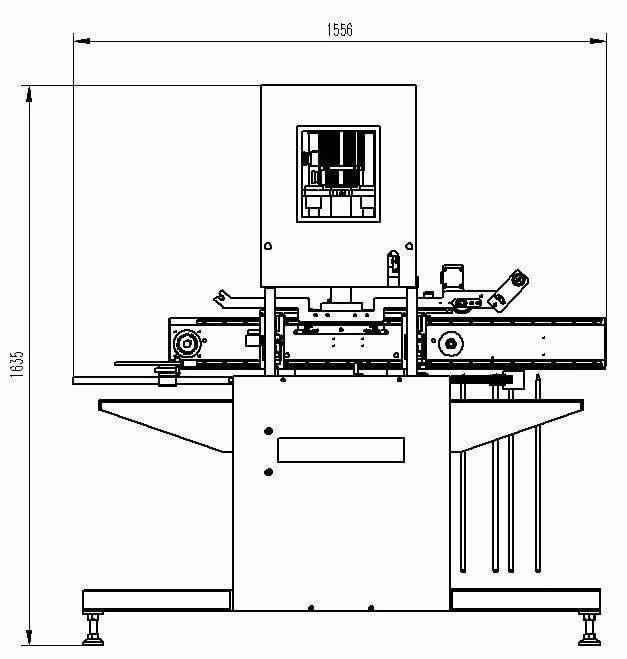

Details 细节展示 FEEDING UNIT 送纸部

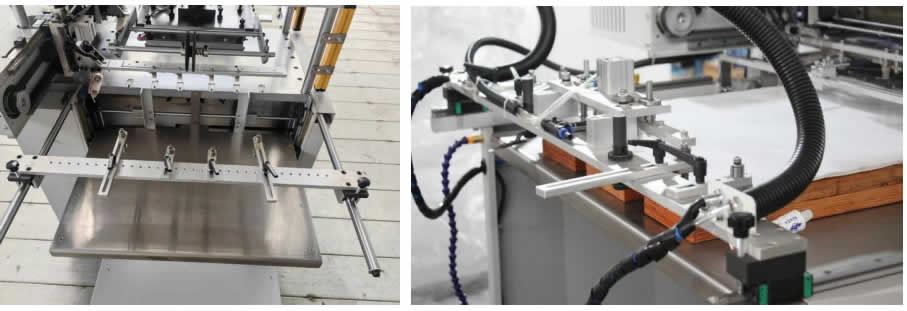

1. 送纸台采用不锈钢材质，硬度好，不生锈 The paper feeding table is made of stainless steel material, with good hardness and no rust.

 2. 升降系统采用步进电机驱动，经久耐用www.mosunmachine.com; Mob：19588172860 The lifting system is driven by a stepper motor, which is durable and long service time

3. 前三角铝左右固定，后挡纸杆万向调节，以应对各种纸张 The front triangular aluminum guides are fixed on both sides, while the rear paper stop bar features multi-directional adjustment to accommodate various paper types.

 4. 前部配有吹风装置，使纸张更好分离，不易走双张 The front section is equipped with an air-blowing device to ensure proper sheet separation and prevent double feeding.

HOT STAMPING DEPARTMENT 烫金部

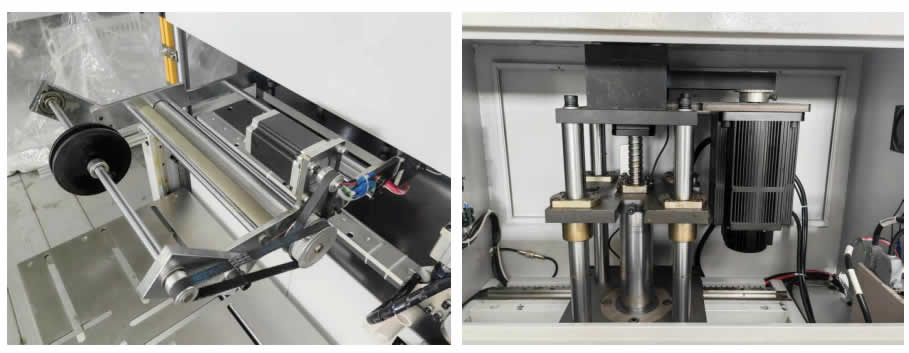

1. 纵向送箔系统，采用同步带驱动，精准无误差 Longitudinal foil feeding system, driven by synchronous belt, precision very high, no error.

2. 机构设计在纵向送箔后方，保证了烫金收箔平整收集。 The institutional design is located behind the vertical foil feeding, ensuring smooth collection of foil .

 3. 摇动手轮加热板左右可以移动，以便更快速的找准需要烫金的位置 Shake the handwheel can move the heating plate left and right,can quickly position of hot stamping place .

4. 采用 L 型直角推规方式，使纸张定位更加准确，满足不同印刷套准要求 Adopting an L-shaped right angle push gauge to make paper positioning more accurate and meet different printing register requirements.

 5. 主轴采用 1.5KW 的伺服电机驱动，四立柱的结构设计使烫金更加稳定，不易倾斜，主轴轴芯高频淬火深度达 0.5 毫米，表面镀硬铬，经久耐磨 The spindle is driven by a 1.5KW servo motor, and the four column structural design makes the hot stamping more stable and less prone to tilting. The high-frequency quenching depth of the spindle core reaches 0.5 millimeters, and the surface is plated with hard chromium, which is durable and wear-resistant.

 6. 本机配备了安全保护光栅，在机器运行过程中一旦检测到物体靠近，机器就会报警并且停机，以此保护操作人员 的安全 This machine is equipped with a safety protection grating. Once an object is detected approaching during machine operation, the machine will sound an alarm and shut down to protect the safety of the operator

DELIVERY DEPARTMENT 收纸部

1.根据纸张大小调整顶针位置，自动齐纸装置； Adjust the top pin position according to the paper size，automatic paper flushing device 2.收纸光电确保收纸整齐； Paper delivery photoelectricity ensures neat paper delivery

 3.收纸台自动升降控制系统。 Automatic lifting control system for delivery table.

5. 收纸台采用不锈钢材质，硬度好，不生锈，升降系统采用步进电机驱动，经久耐用 The delivery table is made of stainless steel for superior hardness and rust resistance, while the lifting system is powered by a stepper motor, ensuring long-lasting durability.

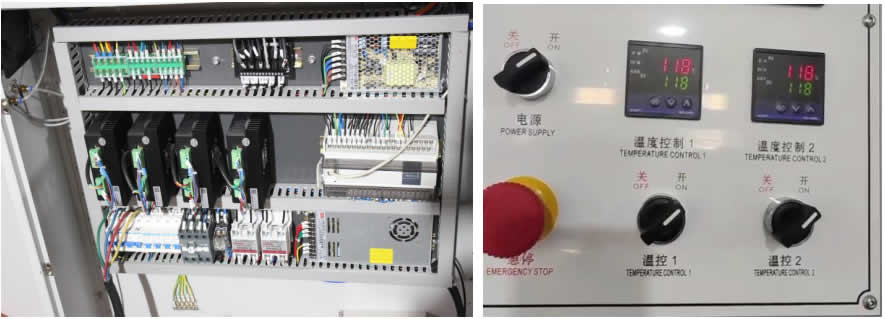

ELECTRICAL DEPARTMENT 电气部

1.人机互动触摸功能可设置不同的长拉与短拉； Human-computer interactive touch function can set different long and short pulls.

2.如金箔长度短于 10cm 将触发警报； If the length of the gold foil is shorter than 10cm, an alarm will be triggered.

 3.计算机处理金箔监控系统显示剩余及已用金箔长度； Computerized gold foil monitoring system displays remaining and used gold foil lengths

4.采用法国施耐德电气元件及信捷电气 PLC 控制系统，保证机器运行稳定； French Schneider Electric components and Xinjie Electric PLC control system are used to ensure stable operation of the machine.

5.采用日本德国西克光电。 Adopt Japanese and German Sik Optoelectronics.
